Originally Published as: Affordable By Design: Open-span versatility meets high-end finishes in a design built to perform

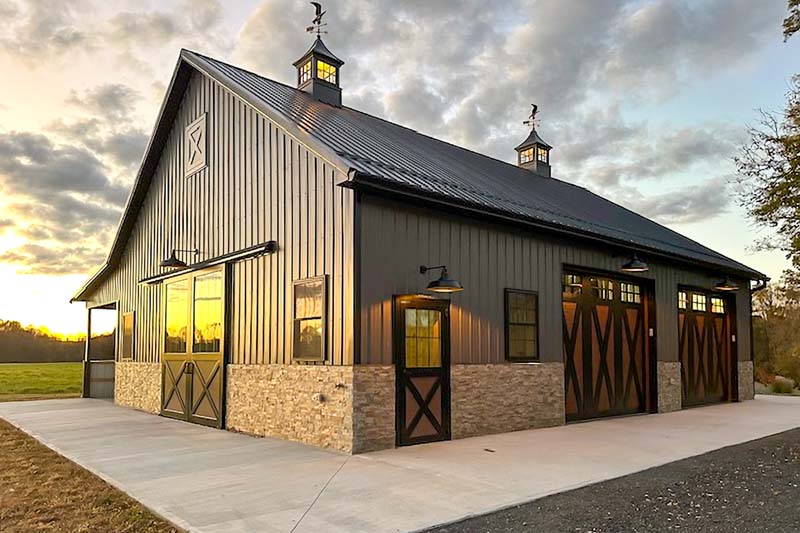

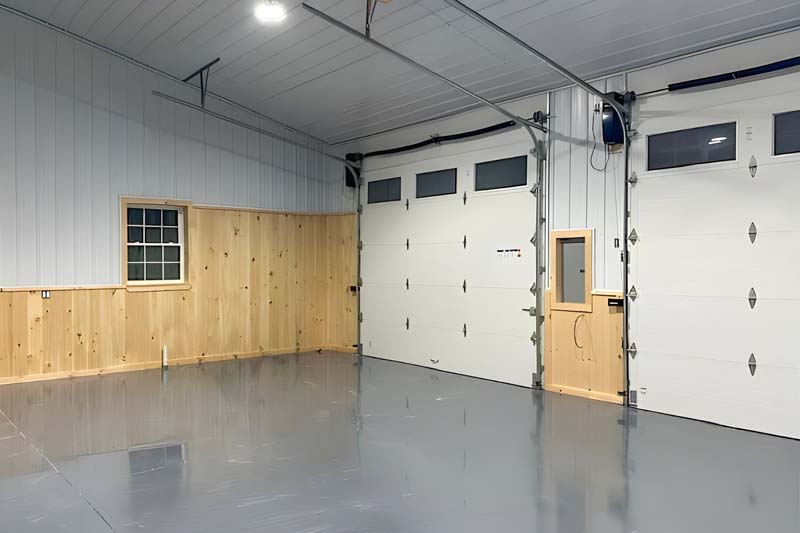

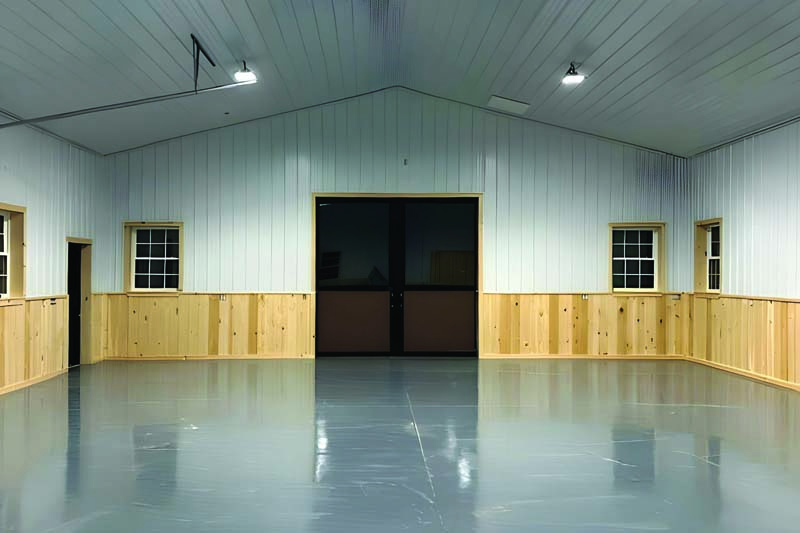

The client needed a solution that could accommodate vehicles and future needs without having to do constant modifications, which is how we arrived at the garage + lean-to design. The client also wanted something that looked nice and enhanced the property, but was affordable, so we had to keep a balance of cost and aesthetic expectations. What really makes this build special is its open-span interior design and high-end exterior finishes.
Project Details
Builder: Whitetail Construction, LLC
Location: Montgomery, New York
Size: 36’x48’
Roof Pitch: 8/12
Foundation Type: Concrete Footers
Trusses: 8/12 pitch scissor trusses (3/12 pitch ceiling) Triple D Truss, 4’ oc
Roof Panels: Central States Inc.
Ultra Lifetime 26 ga. Black
Wall Panels: Central States Inc.
Ultra Lifetime 26 ga Charcoal
Fasteners: GRK Screws
Overhead Doors: 2 Clopay 12×10 Canyon Ridge Carriage House Ultra-Grain Cypress, Walnut finish with Black overlay with glass
Walk Doors: J&E Grill Manufacturing 36” Aluminum Powder Coated 6 Lite Jet Black with Custom Brown X detail
Sliding Doors:
(2) 10×10 Split Slider J&E Grill Mfg.
Posts: Structural Glulam 3-Ply Laminated Posts
Windows: (5) 3×4 Double Hung Black/White 7D Industries
Ventilation: Central States Inc.
Ridge Cap with Univent
Soffit: Aluminum full vent soffit
Vapor Barrier: DripX on the roof; Tyvek on the walls
Insulation: (Walls) R-19; (Roof) R-38 blown in
Cupola: (2) 36” Gray vinyl cupolas with concave metal roof, Cupola Creations LLC

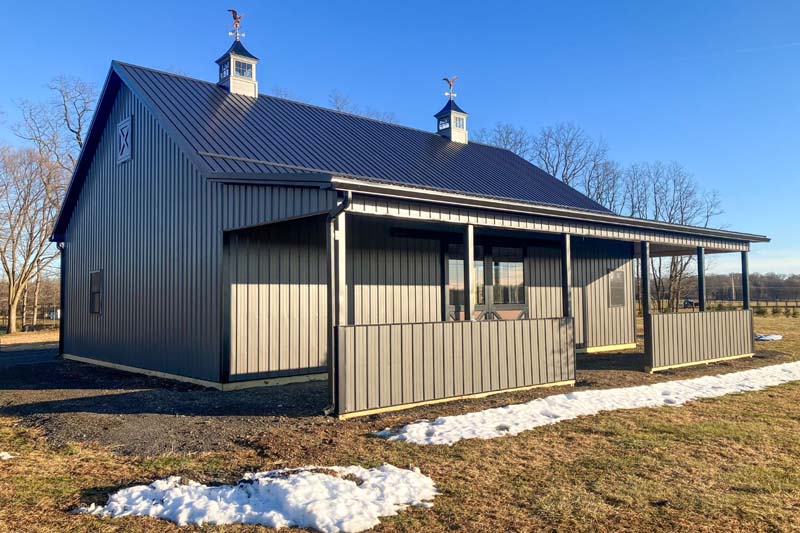

Other Details: 12x48x11 Lean to, Scissor Trusses, Snow Bars, Tyvek Wrap on sidewalls, 3×3 Cupola (composite) w/glass & weathervane, 10×10 (insulated) aluminum powder coated split slider doors w/ glass, Jet Black w/ custom Brown X detail, metal liner panel on sidewalls and ceiling w/ T&G wainscoting on interior, (2) 3×3 faux bale doors black. Stone wainscoting: homeowner supplied & installed.
