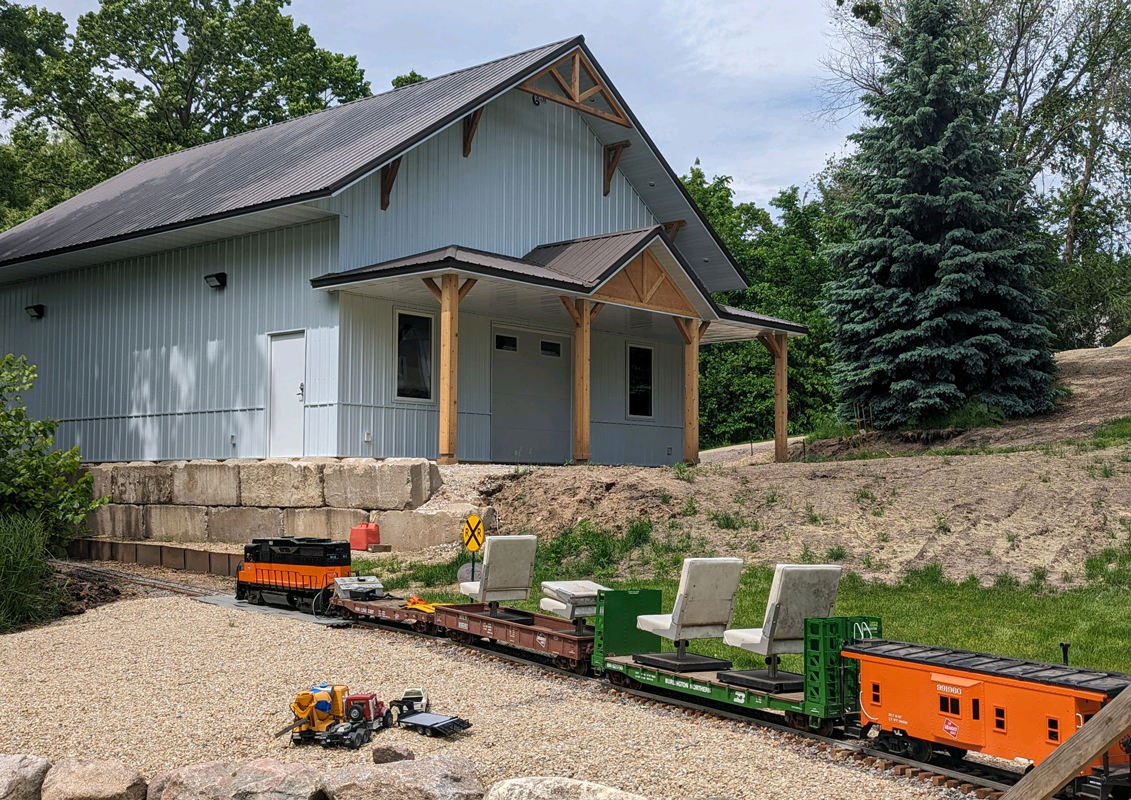

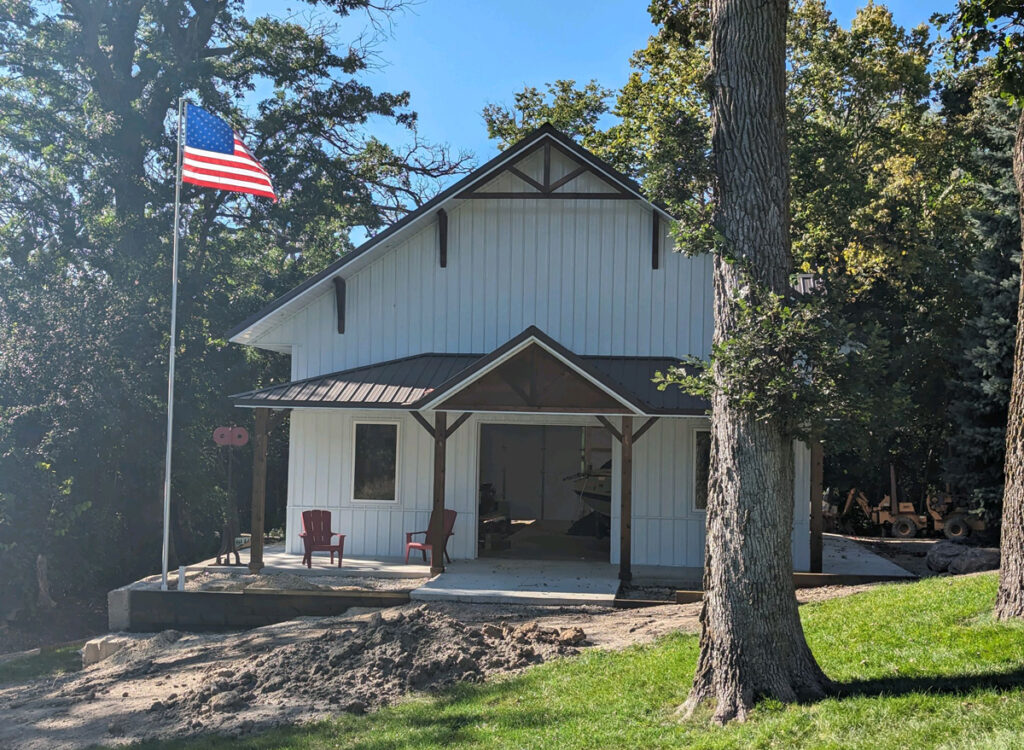

This hobby shop building was built to help accommodate the owner’s need for storage space, and his need for a dedicated location to grow his train hobby. The idea of regaining his attached-garage parking space, and move his hobby to a new structure had been on his mind since they moved in. The building is tucked in nicely behind the owner’s house, among his mature trees, with the grading and landscaping completed by the owner, to make it feel like the structure was there many years ago.

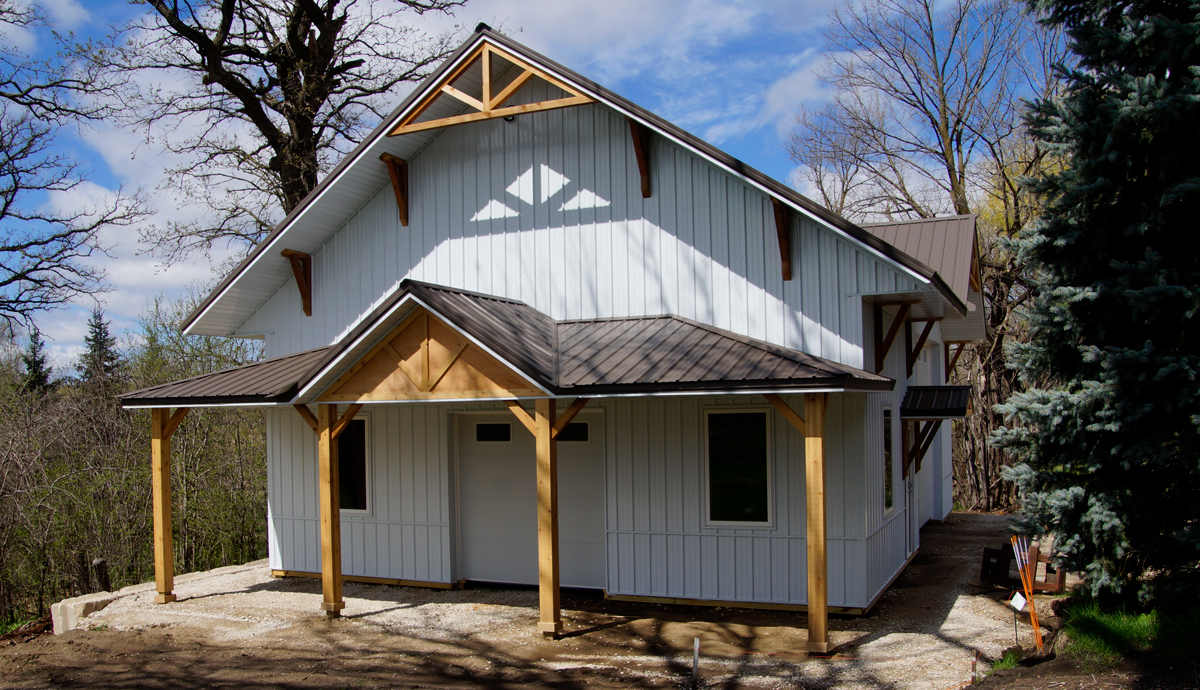

The building was designed with specifically located garage doors to allow for future train tracking to run up inside the building, through the other end, and back on the tracks that circle the owner’s property. Because the building sits lower in elevation than the house, the concern of a shiny metal roof was combatted by using a more matte-finished roof steel panel (Metal Sales: Burnished Slate Crinkle Coat). The cedar corbels, and porch design, were added as an ode to the features once seen on many historical train stations. Future plans include adding a lean-to from the building’s sidewall, down over the tracks, to have a specific place for the train to sit protected from the weather.
The Details
Builder: RAM Buildings, Inc., Winsted, Minnesota
Location:
Maple Plain, Minnesota
Size:
30’ x 40’ x 14’ w/ 8’ x 30’ porch
Roof Pitch: 8/12
Trusses: Littfin Wood Trusses
Roof Panels: Metal Sales 29-ga. Classic Rib
Wall Panels: Metal Sales 29-ga. Classic Rib
Fasteners:
SFS Woodgrip+ Screws
Overhead Doors: Midland 2” Energy Saver 2/ 24” x 12” insulated windows
Walk Doors: AJ Manufacturing 7100 Steel Walk Door
Columns: Littfin Truss 3-ply
2×6 wood columns
Windows: Thermo-Tech Classic Series Vinyl Casement Windows
Ventilation: Ventco ProfileVent
Additional Components: Tyvek HomeWrap
